jDXC TS Convergence Equipment
jDXC E1 Time Slot Convergence Equipment
| Overview | |
JDXC E1 time slot convergence device is a chassis type device with a height of 1U and a height of 19 inches. The hardware part is composed of the main board, E1 sub-board and the back board. Reliable cPCI connectors are used to connect each other. Each product with full load can be equipped with four E1 sub-boards, E1 access capacity up to 128 channels. This product mainly completes the functions of time slot crossover and convergence, and is used together with signaling acquisition equipment. Through the function of time slot convergence, the input cost of signaling acquisition equipment can be greatly reduced. |
|
| Features & Benefits | |
| Carrier Grade | JOYIT jDXC E1 Time Slot Convergence Equipment satisfies carrier grade customer’s reliability requirements of 99.99999% to equipment |
| Hight Availability |
JOYIT jDXC E1 Time Slot Convergence Equipment can satisfy the access capacity requirements of current communication market, with humanized WEB OA&M configuration and management, which is intuitional and easy to use. It supports online remote sofware upgrading and API is provided, supports PTP and NTP time synchronization and the time-stamp accuracy can reach to 0.1ms, supports automatic link scanning to reduce on-site implementation work. Automatic link type recognition function facilitates subsequent data decoding applications. |
| Flexibility |
JOYIT jDXC E1 Time Slot Convergence Equipment can increase or decrease corresponding modules according to the field application to meet the needs of the field, so as to save cost and cabinet space to the greatest extent. |
| Scalability |
JOYIT jDXC E1 Time Slot Convergence Equipment can increase or decrease subboards according to the actual needs of the site to achieve smooth capacity expansion.The 1U device is fully equipped with 16 stm-1 /OC3 155M channels, and 4096 64K/32K/16K/8K low-speed links are collected, or 128 2M/Nx64K high-speed links are collected. |
| Technical Specifications | |
| Appearance | 19", 1U height, rack type |
| Physical Specifications | 44.3mm(Height)*443mm(Width)*391mm(Depth) |
| Weight | 4 KG |
| Power | AC 220V dual power supply, with power redundancy backup function. |
| Consumption | 80W (Full Load) |
| Physical Interface | RJ-48,75 Ohm & 120 Ohm Trunk, |
| Network Interface | RJ-45, Dual Redundant 10/100/1000 Base-T |
| Environment |
Temperature ：0℃~85℃， RH：≤95%（humidity 40℃±2℃）， Pressure ：70~106Kpa |
| Access | Maximally 128 E1/T1 |
| Crossover | Maximum 128E1*128E1 full time slot non-blocking cross connection can be achieved. |
| E1 Subboards | 4 |
| Subboards Port Number | 32 |
| Installation E1 | Hot-swap |
| Network Management | WEB、TELNET |
| Certification | CE, RoHS |

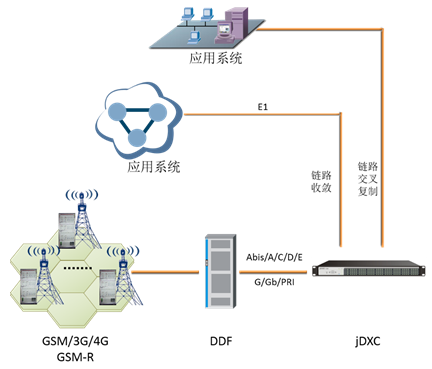

| Application | |
 | |
