PCD Photoelectric Converter Equipment
PCD E1/STM-1/STM-4 Photoelectric Converter Equipment
| Overview | |
PCD E1/STM-1/STM-4 Photoelectric Converter Equipment is 1 u height 19 inches chassis frame transmission equipment. The device can be connected to 128 channels E1, 8 stm-1 and 2 stm-4 at the same time, and any time slot in different types of ports can be switched, so as to realize the capability of switching from electrical port to optical port and from optical port to electrical port. |
|
| Features & Benefits | |
| Carrier Grade | PCD E1/STM-1/STM-4 Photoelectric Converter Equipment satisfies carrier grade customer's reliability requirements of 99.99999% to equipment. |
| High Applicability |
PCD E1/STM-1/STM-4 Photoelectric Converter Equipment can meet the demand of current communication market for access capacity, user-friendly WEB configuration and management, intuitive and easy to use.Support online remote software upgrade and provide secondary development interface. |
| Flexibility |
PCD E1/STM-1/STM-4 Photoelectric Converter Equipment can increase or decrease corresponding modules according to the field application to meet the needs of the field, so as to save cost and cabinet space to the greatest extent. |
| Scalability |
PCD E1/STM-1/STM-4 Photoelectric Converter Equipment can realize smooth capacity expansionan application transformation with sub-boards change according to on-site actual requirements. 1U PCD quipment can access 128 E1, 8 STM-1 and 2 STM-4. |
| Technical Specifications | |
| Appearance | 19", 1U height, rack type |
| Physical Specifications | 44.3mm(Height)*443mm(Width)*554mm(Depth) |
| Weight | 48 KG |
| Power | DC -48V |
| Consumption | 58W(Full load) |
| Physical Interface | E1/T1 75 Ohm & 120 Ohm Trunk, STM-1/OC3 155M, STM-4/OC12 622M |
| Network Interface | RJ45, Dual Redundant 100/1000 Base-T |
| Time Synch | PTP + NTP |
| Environment |
Temperature ：-40℃~85℃，RH：≤95%（Humidity40℃±2℃）， Pressure ：70~106Kpa |
| Access | Maximally 128 E1/T1，8个STM-1/OC3 155M，2个STM-4/OC12 622M |
| Signal Gain(DB) | 0, 14, 20, 26, 32 |
| Network Management | WEB、TELNET |
| Design Criteria |
E1 physical interface: as recommended by G.703, including 75 ohm non-equilibrium interface or 120 ohm equilibrium interface; Relay clock: ITU-T G..812 specification |
| Certification | CE, RoHS |

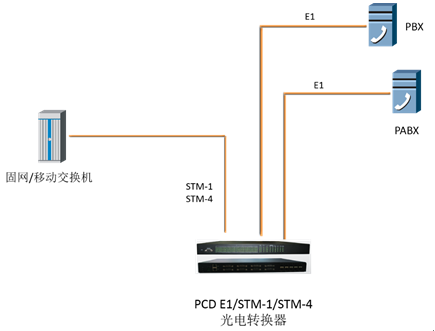

| Application | |
 | |
