PCD Photoelectricity TS Convergence Equipment
PCD E1/STM-1/STM-4 Photoelectricity Time Slot Convergence Equipment
| Overview | |
PCD E1/ stm-1 / stm-4 Photoelectricity Time Slot Convergence Equipment is a 1U high standard 19-inch rack Equipment, the Equipment can be connected to E1, stm-1 /OC3 155M fiber and stm-4 / oc12-622m fiber, and achieve any E1, stm-1 and stm-4 Time Slot crossover and Convergence. The device can be used together with signaling acquisition equipment, and the input cost of signaling acquisition equipment can be greatly reduced by the function of time slot convergence. |
|
| Features & Benefits | |
| Modularization |
PCD E1/STM-1/STM-4 adopts the stacked design of sub-boards with different functions to effectively consider the independence of modules and the coordination of functional assistance. |
| High Density & Capacity |
Maximum realization of 64Kx64K non-blocking cross-connection. |
| Installation easy |
PCD E1/STM-1/STM-4 is equipped with 4 wiring panels of 1U height, which are mainly installed at the rear of the cabinet to facilitate the access of 2M cables at E1 port. Only pcd-dxc128 and the attached wiring panel are required for the project implementation. |
| Maintain easy |
The network management adopts the method of embedded WEB server. Users can directly access PCD E1/ stm-1 / stm-4 with Internet explorer to configure the requirements of the cross-gap table without installing additional configuration software.At the same time, the software can be updated remotely. |
| Technical Specifications | |
| Appearance | 19", 1U height, rack type |
| Physical Specifications | 44.3mm(Height)*443mm(Width)*554mm(Depth) |
| Weight | 4 KG |
| Power | DC -48 |
| Consumption | 59W (Full load) |
| Physical Interface | E1/T1 75 Ohm & 120 Ohm Trunk, STM-1/OC3 155M, STM-4/OC12 622M |
| Network Interface | RJ45, Dual Redundant 100/1000 Base-T |
| Clock Synchronization | PTP + NTP |
| Environment |
Temperature ：-40℃~85℃，RH：≤95%（Humidity40℃±2℃）， Pressure ：70~106Kpa |
Exchange | 64K x 64K |
| Access | Maximally 128 E1/T1，8 STM-1/OC3 155M，2 STM-4/OC12 622M |
| E1 Port Number | 128 |
| STM-1 Port | 8 |
| STM-4 Port | 2 |
| Signal Gain(DB) | 0, 14, 20, 26, 32 |
| Network Management | WEB、TELNET |
| Design Criteria |
E1 physical interface: as recommended by G.703, including 75 ohm non-equilibrium interface or 120 ohm equilibrium interface； Relay clock: ITU-T G..812 specification |
| Certification | CE, RoHS |

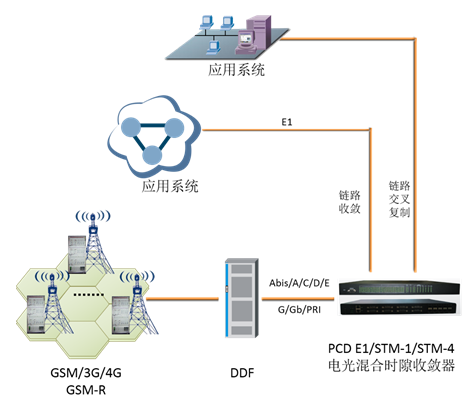

| Application | |
 | |
