jDXC E1 Digital Cross-connect Equipment
| Overview | |
jDXC E1 Digital Cross-connect Equipment is a 1U height 19-inch chassis frame transmission equipment, the hardware part is composed of the motherboard, E1 sub-board, the back board three parts, the use of reliable cPCI connector to connect each other. Each product with full load can be equipped with four E1 sub-boards, E1 access capacity up to 128 channels;The product mainly completes slot replication, crossover, and realizes slot convergence, distribution and other functions. |
|
| Features & Benefits | |
| Programmable Control |
JDXC provides TCP control interface, through which the application system can control jDXC to perform crossover and demolition between different time slots in real time, so as to realize dynamic time slot exchange capability. |
| Modularization |
JDXC extends the modular design concept in the software development process in the hardware design. When a module in the product hardware has problems, it only needs to replace the sub-module, so as not to affect the work of the whole machine. |
| High Density & Capacity |
1U height realizes the non-blocking cross-connection of 128E1 X 128E1 signal. |
| Easy Implementation |
JDXC is equipped with 4 E1 sub-boards, which are mainly installed at the rear of the cabinet to facilitate access of 2M cables of E1 interface. |
| Software Configuration |
The network management adopts the method of embedded WEB server. Users can directly access jDXC page with Internet explorer and configure the cross-gap table without installing additional configuration software. |
| Carrier Grade |
JOYIT jDXC E1 Digital Cross-connect Equipment satisfies carrier grade customer's reliability requirements of 99.99999% to equipment. |
| High Applicability |
It can meet the demand of current communication market for access capacity, user-friendly WEB configuration and management, intuitive and easy to use.Support online remote software upgrade and provide secondary development interface. |
| Technical Specifications | |
| Appearance | 19", 1U height, rack type |
| Physical Specifications | 44.3mm(Height)*443mm(Width)*391mm(Depth) |
| Weight | 4 KG |
| Power | AC 220V dual power supply, with power redundancy backup function. |
| Physical Interface | RJ-48,75 Ohm & 120 Ohm Trunk |
| Network Interface | RJ-45, Dual Redundant 10/100/1000 Base-T |
| Consumption | 80W (Full Load) |
| Environment |
Temperature ：-40℃~85℃，RH：≤95%（Humidity40℃±2℃）， Pressure ：70~106Kpa |
| Access | Maximally 128 E1/T1 |
| Cross | Maximum 128 E1*128 E1 full time slot non-blocking cross connection can be achieved . |
| E1 Subboard | 4 |
| E1 Subboard Installation | Hot-swap |
| E1 Subboard Port | 32 |
| Network Management | WEB、TELNET |
| Certification | CE, RoHS |

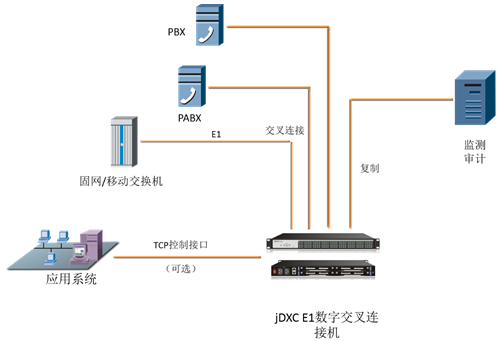

| Application | |
 | |
